Name: OEM/ODM Plastic Passive Piezo Buzzer 3V 5V 2207 85dB Buzzer For Elevator Or Bike
Brand: OEM/ODM Plastic Passive Piezo Buzzer 3V 5V 2207 85dB Buzzer For Elevator Or Bike
SKU: SS2220PB4-2K
Price: 0.17 USD
Availability: InStock
Rating: 4.6 (147 reviews)

풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

Model Number: SS2220PB4-2K

Type: Buzzer

Material: Plastic

Color: Black

Input Type: AC

Voltage - Rated: 5v

Voltage Range: 2-20

Frequency: 2k

Mounting Type: Through Hole

Size / Dimension: 22*7.5

Height (Max): 7.5

Resonant Frequency (KHZ): 2.0Â±0.3

Rated Voltage (VP-P): 5

Operating Voltage (VP-P): 3~24

Capacitance at 1000Hz (Pf): 18000Â±30%

Operating Temperature (0C): -20~+70

Storage Temperature (0C): -30~+80

Housing Material: PBT(Black)

Size: D=22 ,H=7.5mm

Pin Pitch: 10mm

Products: office door buzzer

기본 정보

Model Number: SS2220PB4-2K

결제 및 배송 조건

Packaging Details: BOX/300PCS Carton/3600PCS

Supply Ability: 10000000 Piece/Pieces per Month office door buzzer

제품 설명

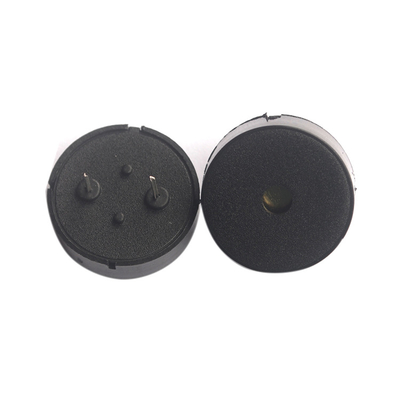

OEM/ODM Passive Buzzer 3V 5V 2207 85dB Piezo Buzzer For Elevator Or Bike

Product Description

Resonant Frequency (KHZ)	2.0±0.3
Rated Voltage (VP-P)	5
Operating Voltage (VP-P)	3~24
Max. Current Consumption at Rated Voltage (mA)	2
Capacitance at 1000Hz (Pf)	18000±30%
Min. Sound Output at 10cm at Rated Voltage (dB)	≥80
Operating Temperature (0C)	-20~+70
Storage Temperature (0C)	-30~+80
Housing Material	PBT(Black)
Size	D=22 ,H=7.5mm
Pin pitch	10mm

Hot Products

Before quote you the price ,we will be appreciated if you can provide the information below:

1. Buzzer type.
2. Technical Terms.
3. Buzzer size(Diameter & Height ).
4. Anticipated demand.
5. If possible,pls provide the picture ,If you are not clearly , we will recommend for you.
With above information we can quote exact price immediately.
